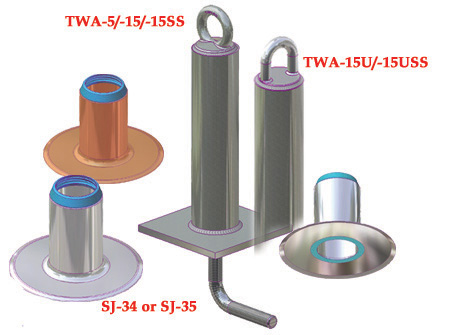

Thaler TWA ECONO cast-in-place anchors consist of a urethane insulated hollow steel post (HSS) with base plate, single stainless steel bolt (welded to base plate) for securing to concrete roof slab, and flashing sleeve. The top of the anchor is available with three different options:
- With galvanized forged eye (TWA-5).
- With stainless steel forged eye (TWA-15). For all stainless steel anchor, specify (TWA-15SS).
- With stainless steel U Bolt eye (TWA-15U). For all stainless steel anchor, specify (TWA-15USS).
Recommended Use: Suitable for all low/flat roofs as fall arrest anchors for securing workers' lifelines or the tying back of suspended access equipment such as outrigger beams and parapet wall clamps. Also suitable for suspension of boatswain chair.
|
|
