MERS-650A-1 Re-Roofing Pipe Support (Single, Large, Insulated Pipe)

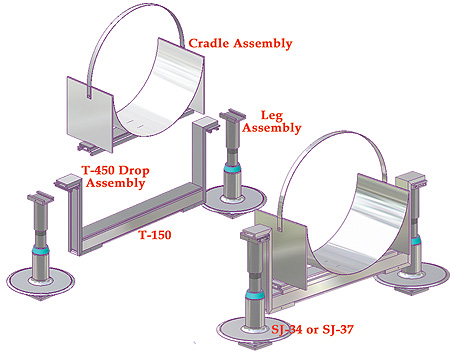

MERS-650A-1 Pipe Support consists of a pair of round, urethane insulated, hollow section aluminum supports with threaded leg assembly and mounting plate, s.s. strap, and s.s. pipe cradle assembly, with STACK JACK flashing, complete the supports.

Recommended Use: Suitable for all flat roofs as a single, large, insulated pipe support for existing pipe sizes from 12" to 48" (305 mm to 1220 mm) dia.

For example you require the following elements to complete MERS-650A-1 for a 10" pipe with a steel deck and aluminum flashing that requires 18" legs:

Make sure you select the appropriate number of each of these elements.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
