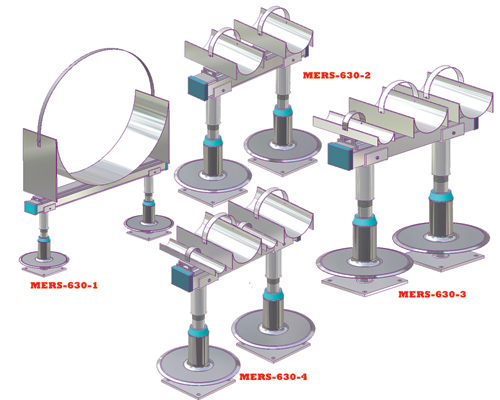

MERS-630A-1 Pipe Support (Single, Large, Insulated Pipe)

MERS-630A-1 Pipe Support consists of a round, urethane insulated, aluminum support with threaded leg assembly for vertical adjustment and mounting plate, s.s. strap, s.s. cradle and STACK JACK flashing available in aluminum, copper, or stainless steel, aluminum cross-bar carrier with EPDM end caps.

Recommended Use: Suitable for all flat roofs as a single large, insulated pipe support for pipe sizes from 4" to 48 " (102 mm to 1220 mm).

For example you require the following elements to complete MERS-630A-1 for a 10" pipe with a steel deck and aluminum flashing that requires 18" legs:

Make sure you select the appropriate number of each of these elements.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
