MERS-615A Aluminum Pipe Support (Double Insulated Pipe)

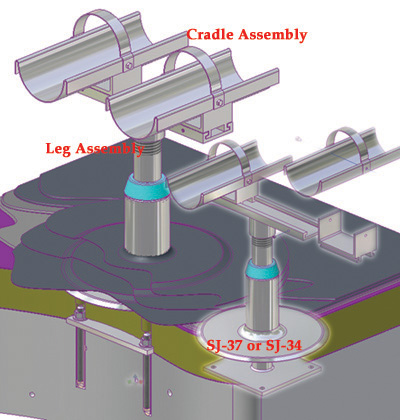

MERS-615A Pipe Support consists of an urethane insulated, hollow section aluminum support with threaded leg assembly for vertical adjustment and mounting plate. STACK JACK flashing available in aluminum, copper or stainless steel, with EPDM Triple Pressure Grommet Seal at the top of the flashing and EPDM Base Seal.

Recommended Use: Suitable for all flat roofs as a double, insulated pipe support for pipe sizes from 2" (51 mm) to 8" (203 mm) dia.

For example you require the following elements to complete MERS-615A for a 4" pipe with a steel deck and aluminum flashing that requires 18" legs:

Make sure you select the appropriate number of each of these elements.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
