MERS-930A , MERS-935A, MERS-940A Re-Roofing Air Handling Unit Support

MERS-930A, MERS-935A, MERS-940A, Re-Roofing Air Handling Unit Supports (Medium & Large Units) assembled with two 1-1/2" (38 mm) diameter pipe section tie the two pairs (or more) supports together for added strength.

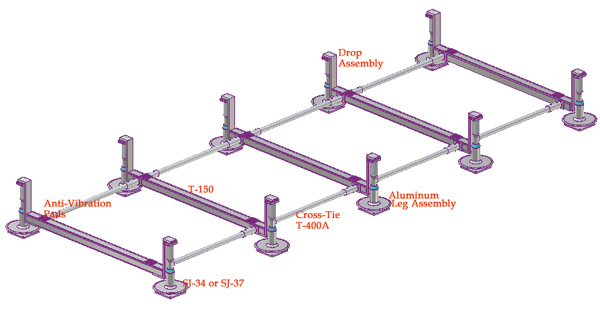

MERS-935A illustrated For complete product data see MERS-910A

For example you require the following elements to complete MERS-935A for a AC unit 37-3/4" x 38-7/8" with a steel deck and aluminum flashing that requires 18" legs:

6 x T-300 Aluminum Leg (18")
12 x "J" Bolt
4 x 35-inches x T-400A
6 x 13-inches x T-450 Assembly
6 x SJ-37 (Aluminum)
3 x 64-inches x T-150 beam
6 x Anti-Vibration pads

Make sure you select the appropriate number of each of these elements.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
