MERS-920A Air Handling Unit Support (Large Units)

MERS-920A Air Handling Unit Support(Large Units) suitable for all flat roofs as an air handling large unit support. For complete product data, see MERS-900A

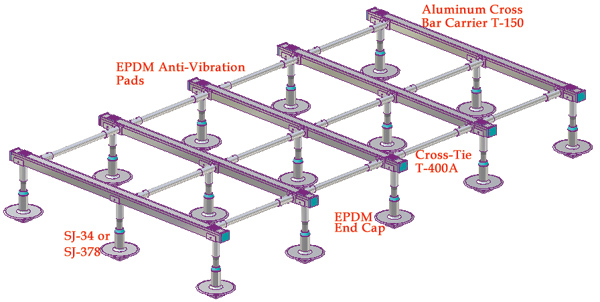

For example you require the following elements to complete MERS-920A for a large AC unit 8'-0" x 14'-0" with a steel deck and aluminum flashing that requires 20" legs:

16 x T-300 Aluminum Leg (18")
30 x "J" Bolt
12 x 36-inches x T-400A
10 x EPDM Cap
15 x SJ-37 (Aluminum)
5 x 90-inches x T-150 beam
10 x Anti-Vibration pads

Make sure you select the appropriate number of each of these elements.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
