MERS-900A Air Handling Unit Support (Small Units)

MERS-900A Air Handling Unit Support consists of two pairs of round, urethane insulated, hollow section aluminum supports with threaded leg assembly and mounting plate, cross-bar carrier with EPDM end caps and EPDM anti-vibration pads, and STACK JACK flashings. Two pipe section cross tie the two pairs of support together.
Recommended Use: Suitable for all flat roofs as an air handling unit support..

For example you require the following elements for an MERS-900A for AC Unit 37-3/4 x 38-7/8, and T-300 18" high for steel deck, and aluminum flashings:

4 x T-300 Aluminum Leg (18")
8 x "J" Bolt
2 x 29-inches x T-400A
4 x EPDM Cap
4 x SJ-37 (Aluminum)
2 x 43 3/4-inches x T-150 beam
4 x Anti-Vibration pads

Make sure you select the appropriate number of each of these elements.

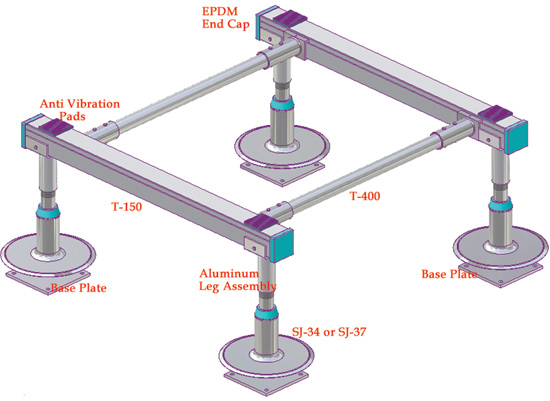

To assist in ensuring you have selected at least one of each of the above components, select a component in the 3D drawing and it will take you to the first element in the list of options for that component. Then, simply select the correct size and material for the item, and put the appropriate quantity into your basket.

For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist!
