MERS-605A Pipe Support consists of an urethane insulated, hollow section 6061-T6 aluminum support with threaded leg assembly for vertical adjustment and mounting plate, two stainless steel pipe roller assemblies. Urethane insulated STACK JACK flashing available in aluminum, copper or stainless steel, with EPDM Triple Pressure Grommet Seal at the top of the flashing and EPDM Base Seal, completes the support. Recommended Use: Suitable for all flat roofs as double, plain pipe support for pipe sizes from 2" (51 mm) to 8" (203 mm) dia. For example you require the following elements to complete MERS-605A for a 4" pipe with a steel deck and aluminum flashing that requires 18" legs:

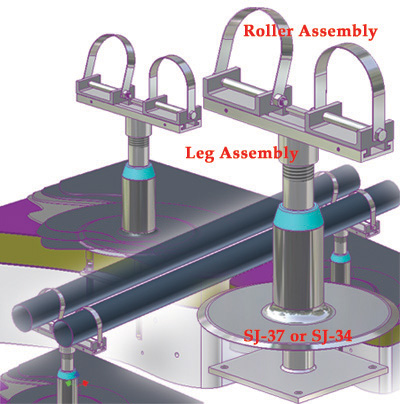

To assist in ensuring you have selected at least one of each of the above components, select a component in the 3D drawing and it will take you to the first element in the list of options for that component. Then, simply select the correct size and material for the item, and put the appropriate quantity into your basket. For assistance in designing an appropriate configuration to meet your requirements, please contact us. We'll be happy to assist! |
||||||
|
|
|||||
