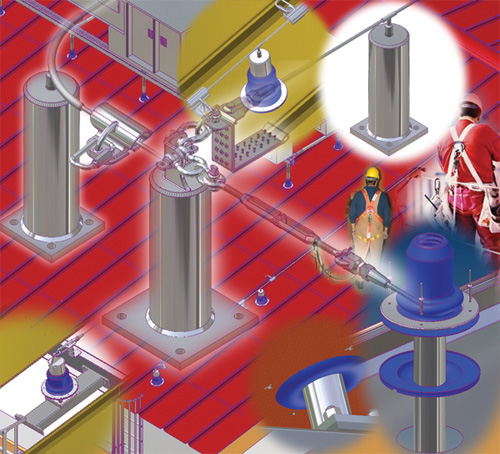

The Thaler D-190 Easy Slider Horizontal Lifeline for Metal Roofs consists of urethane insulated hollow steel post (HSS) anchors with base plates bolted to hollow steel structural struts. The struts are then bolted between and to the metal roof structure frame (Z-channels or C-channels). Anchors are equipped with different type heads to accommodate a stainless steel cable lifeline. All anchor posts are designed to resist without fracture a pull-out force of 5400 lbs (24.3 kN), applied in the most adverse direction. The anchors posts are sealed to the metal roof using the Thaler D-100 black colored EPDM Flexible Flashing that has been designed specifically for sloped metal roofs. The flashing consist of an upper flashing boot with Triple Pressure Grommet Seal, a separate base seal, cast aluminum hold-down ring, and a series of aluminum lock rivets with synthetic rubber washers under the heads.
Recommended Use: Suitable for all slopes from 2° to 45° for both travel restraint and fall arrest using full body harness and lanyard, self retracting lifeline or lifeline with rope grab. Provides fall protection for servicing rooftop equipment, inspecting roof, skylights, and similar items.
|
|
|
|
|
